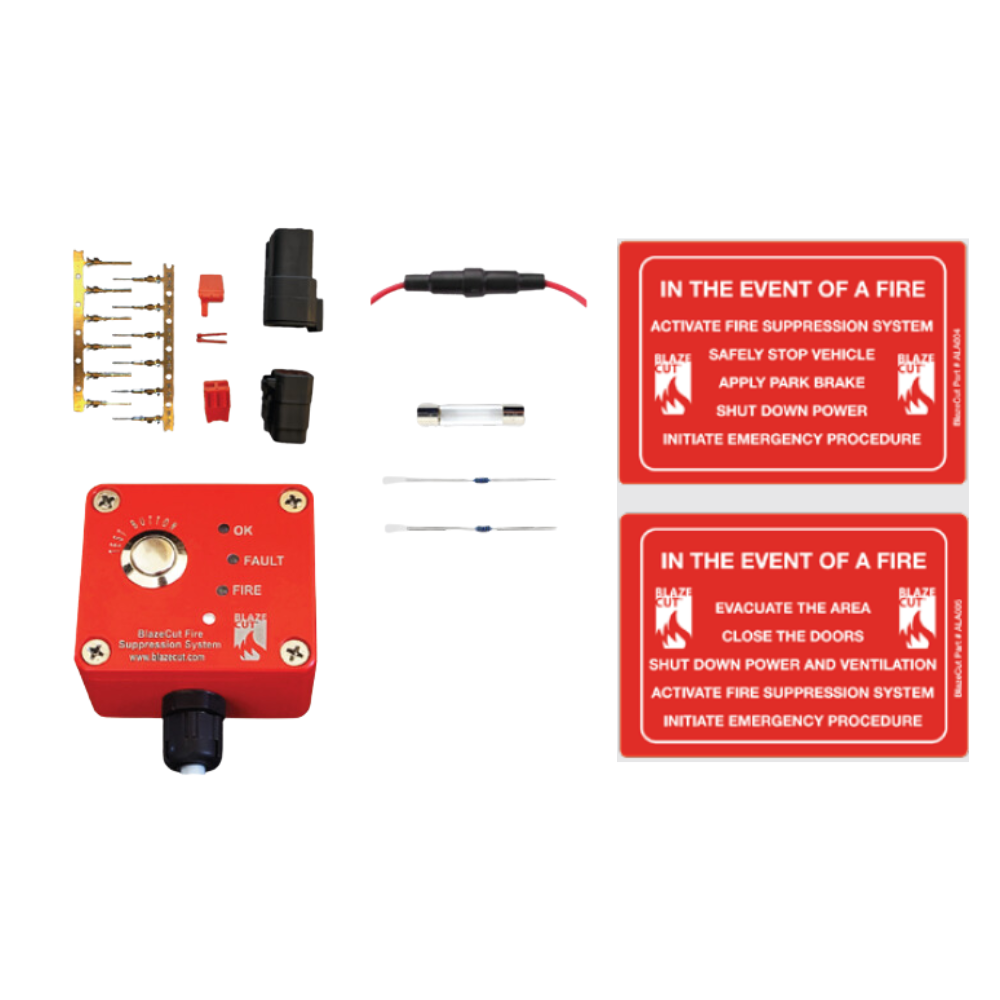

The BlazeCut Alarm Panel AAP400 is a simple and effective optional device for monitoring system status and component functionality. It can be used with the full range of BlazeCut fire suppression systems, where only automatic system activation is required.
Parameter | Description |
Material of body | Red powder coated aluminium |
Dimensions (LxWxH) | 64x58x30 mm (excluding cable gland) |
Operation temperature | from -30 °C to +70 °C |
Ingress protection | IP65 rated (boxed version) |
Operation voltage | from 10 V DC to 30 V DC |
External cable | 0.5 m cable, core 6x Ø 0.5 mm |
Sound power | 85 dB @ 10 cm distance |
External fuse | 200 mA |
Maximum current draw at 12 V DC | 140 mA (at 12 V DC), 70 mA (at 24 V DC) |
Luminous intensity of LED lights | 300 mcd |
Monitoring frequency | 10 Hz |
